Rider specific fit and tune

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

At the foundation of performance is bike fit and geometry. If those two fundamentals are not established, all the engineering wizardry and space age materials in the world won’t save your ride. You need an optimized fit and tuned geometry to give you the confidence and comfort needed to reach your performance potential.

Offered in seven sizes with four fork rakes and giving you the opportunity to choose your bar model, bar width, stem length, stem rise, seatpost length and offset, the Fray has your ideal fit in mind. This ensures that all Frays, regardless of size, will deliver the same level of responsive, confidence inspiring handling required from a performance all road bike.

We have put together this complete bike package that is only available here at Black Magic. All of these bikes will be built to order for the customer to allow for sizing of cockpit pieces, crankset, and choice of tire size at no additional cost. Since we are building these bikes for each rider, we can also provide upgrades like ceramic bearings from Ceramicspeed, power meters, Garmin GPS/Taillights, alternative tire choices, and alternative/additional wheelset options. We will be in touch with each customer individually after the purchase to finalize sizing and details. Fully custom build specs are also available. Please call or email for any questions about upgrades/changes to the build.

Bikes will be shipped fully adjusted and 95% assembled in an oversized container. Simply install your wheels and seatpost and you’ll be ready to ride. Most sizes/configurations ship in approximately 3-4 weeks.

Chassis Specifications

• Real-World Fast™ aero optimization

• Geometry optimized for 31mm - 35mm tires

• Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)

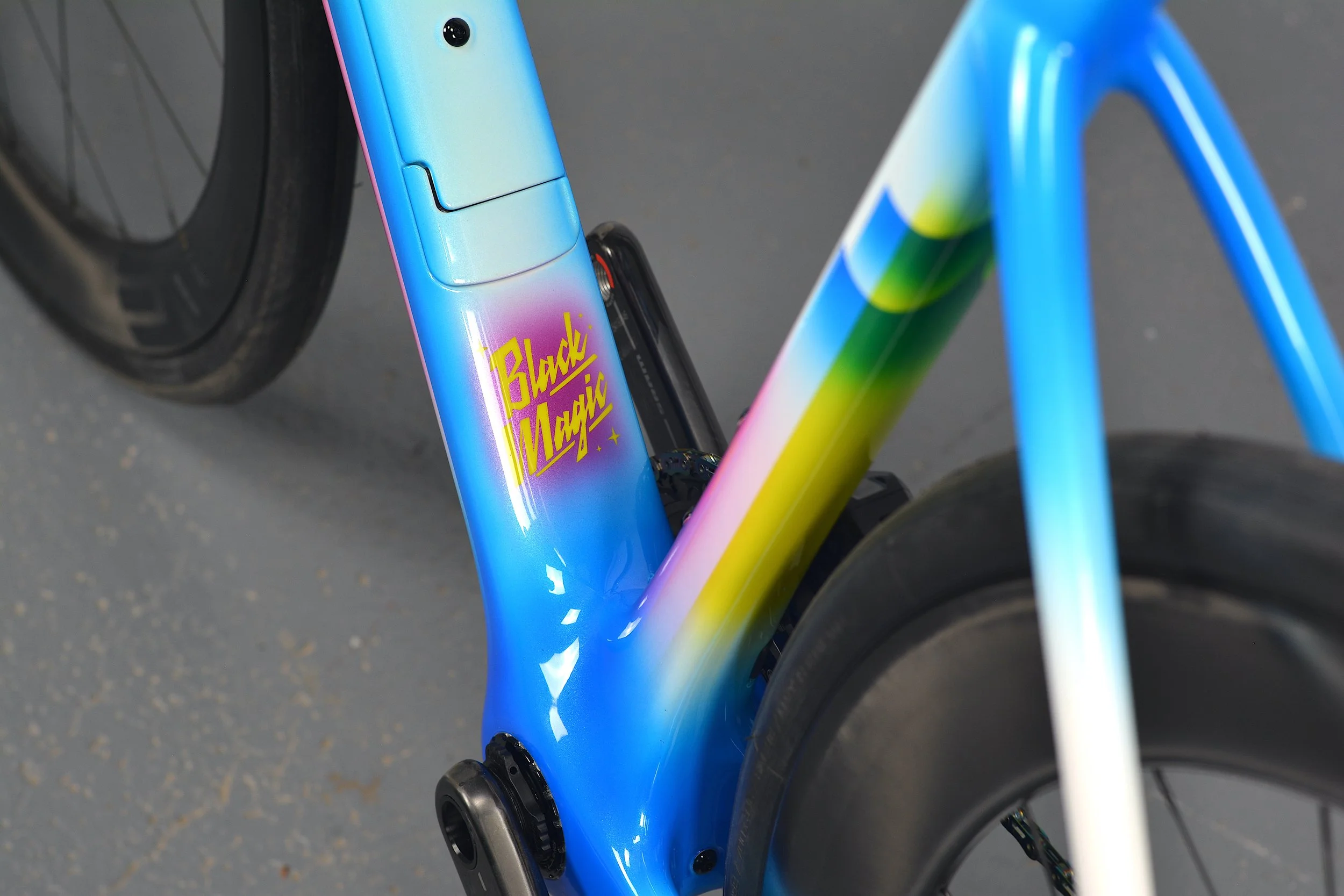

• ENVE Cargo Bay integrated downtube storage allows in-frame storage solution

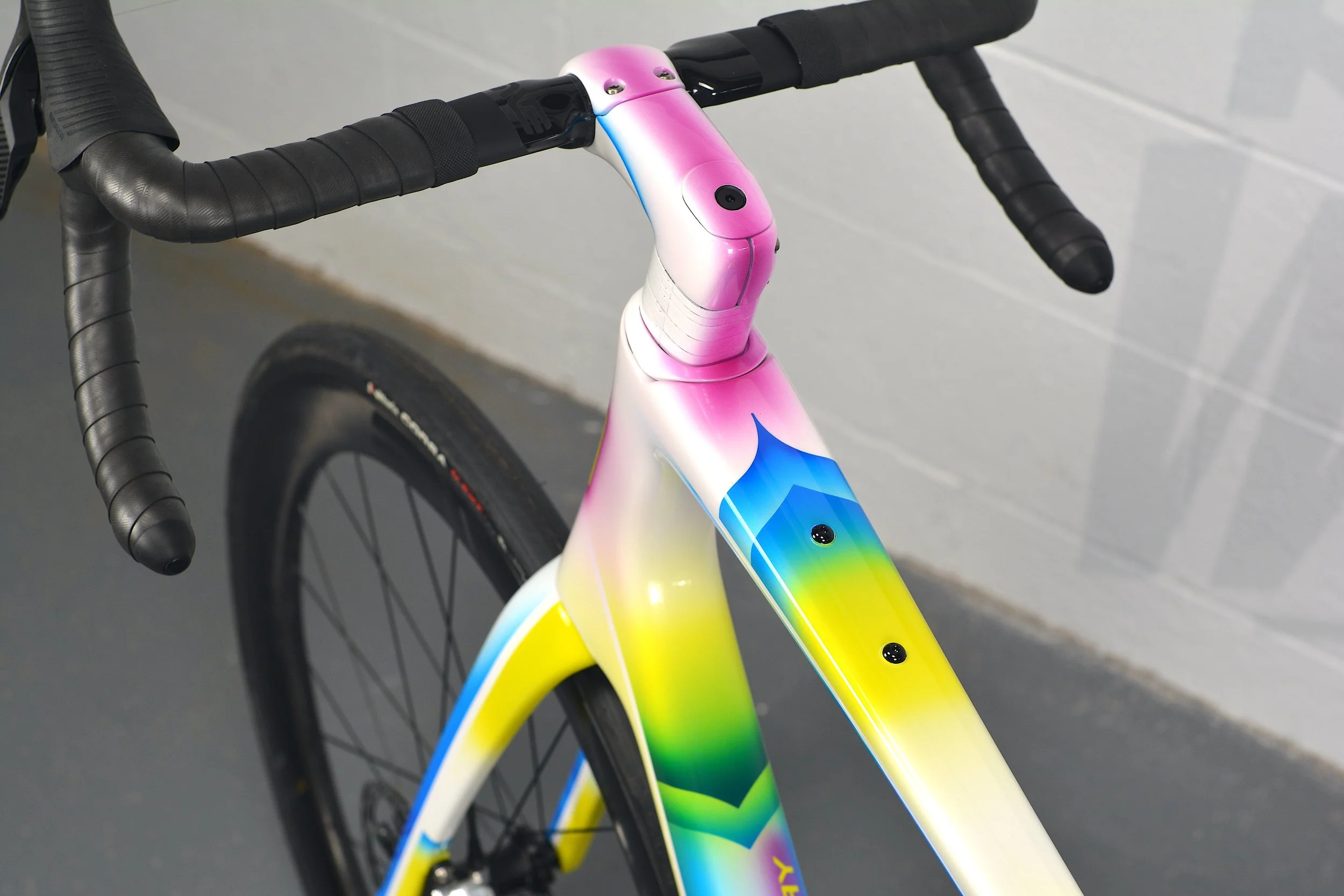

• Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides

• Aero tube shapes & design that complements SES rim shapes

• Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain

• Frame Weight 900g (Size 56cm Painted, No Hardware)

• Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible

• Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible

• Target Application All Road / Endurance / Mixed Surface / Sportif / Fondo

• Sizes (cm) 47, 50, 52, 54, 56, 58, 60

• Fork Rake Size specific 55, 51, 47, 43

• Frame Size/Fork Rake 47cm/55, 50cm/55, 52cm/51, 54cm/51, 56cm/47, 58cm/47, 60cm/43

• Frame Weight 900g +/- 2% (Size 56, Stock Finish, No Hardware)

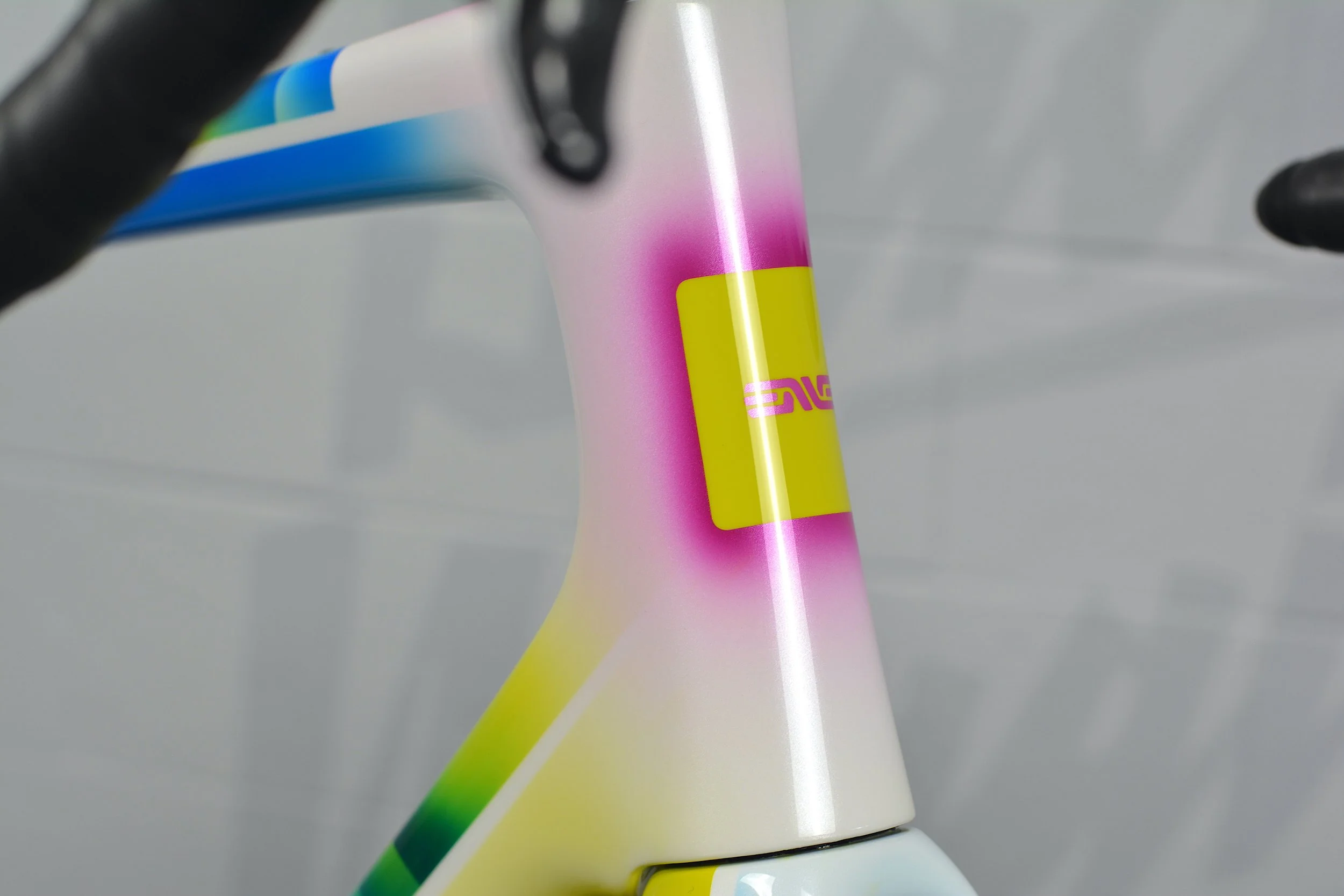

• Headset ENVE Integrated IS52/IS52 Internal Drop-In

• Headset Bearing 1.5″ IS52 Upper and Lower

• Seat Post Diameter ENVE Aero

• BB Type T47 Inboard Bearing

• Brake Mount Flat Mount

• Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)

• Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14)

• Minimum Tire Size 27c

• Optimal Tire Size 31c-35c

• Maximum Listed Tire Clearance (1X) 40mm

• Maximum Listed Tire Clearance (2X) 38mm

• In-Frame Storage Yes (2 Storage Bags included - 18.22 cubic cm each)

• Frame Routing Internal

• Waterbottle Capacity 3

• Top Tube Mounts Yes

• Fender Compatible Yes (with additional fender kit)

• Wheel Size 700c

Component Specifications

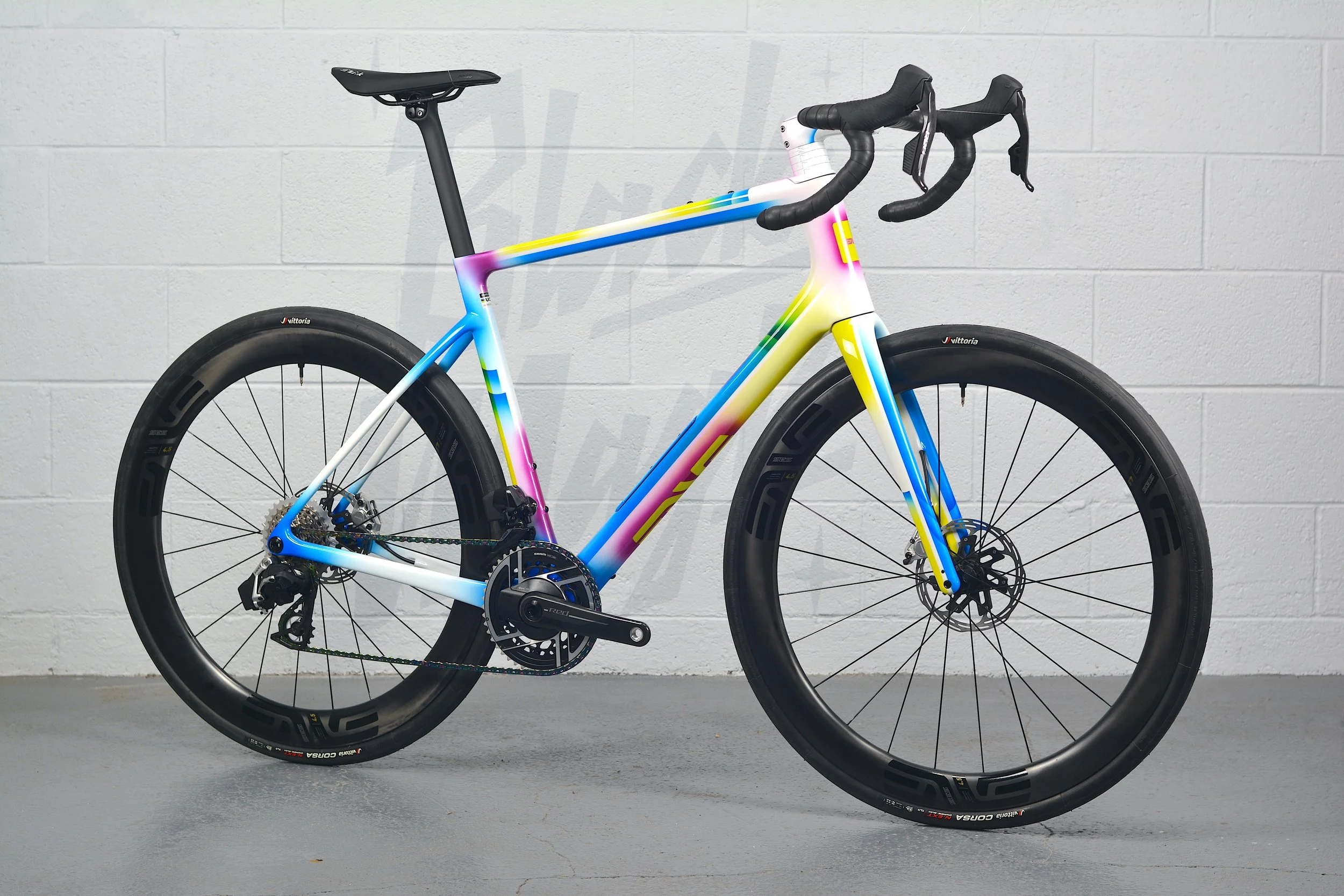

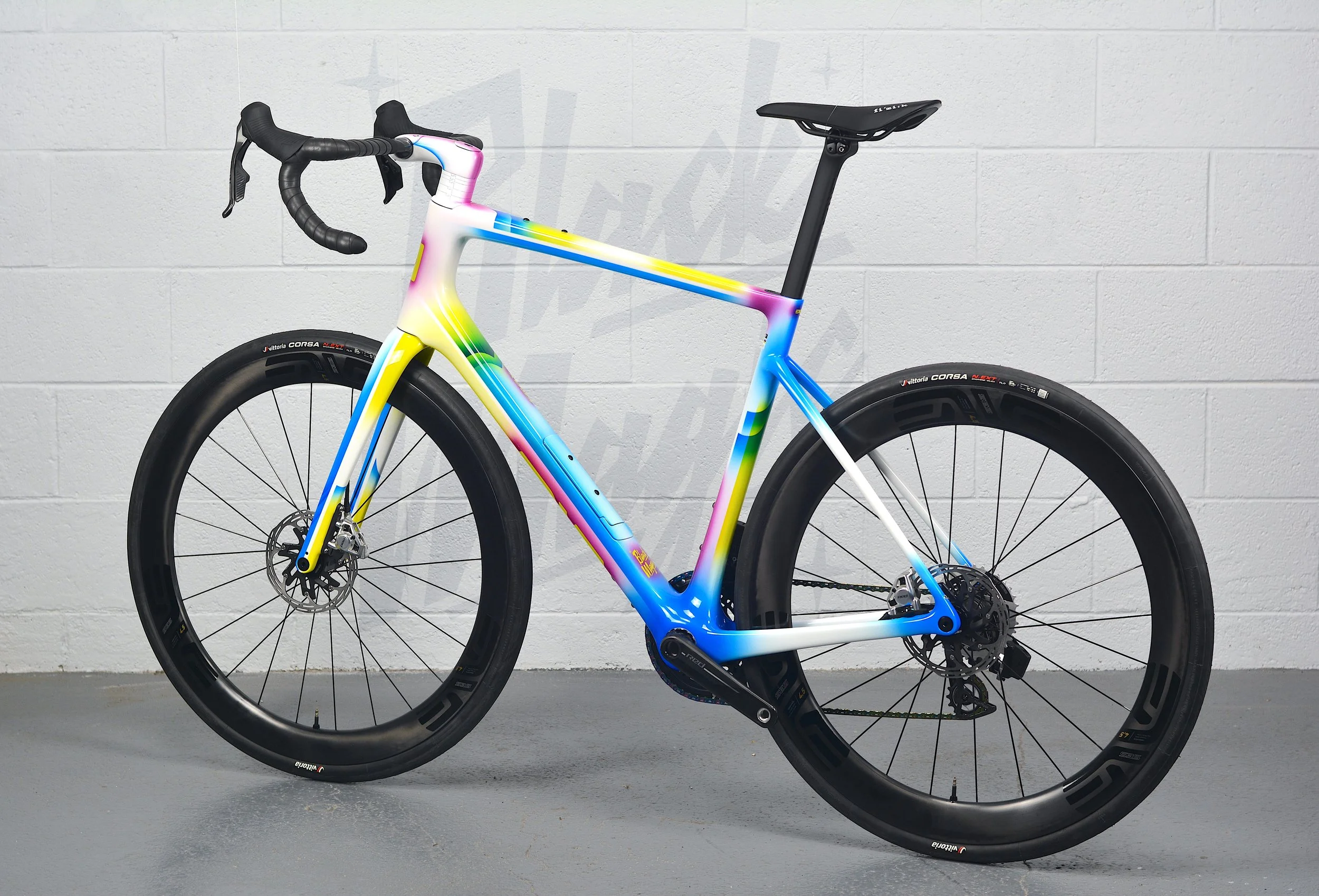

• Frame ENVE Fray

• Fork ENVE Fray

• Rear derailleur Sram Red E1 AXS

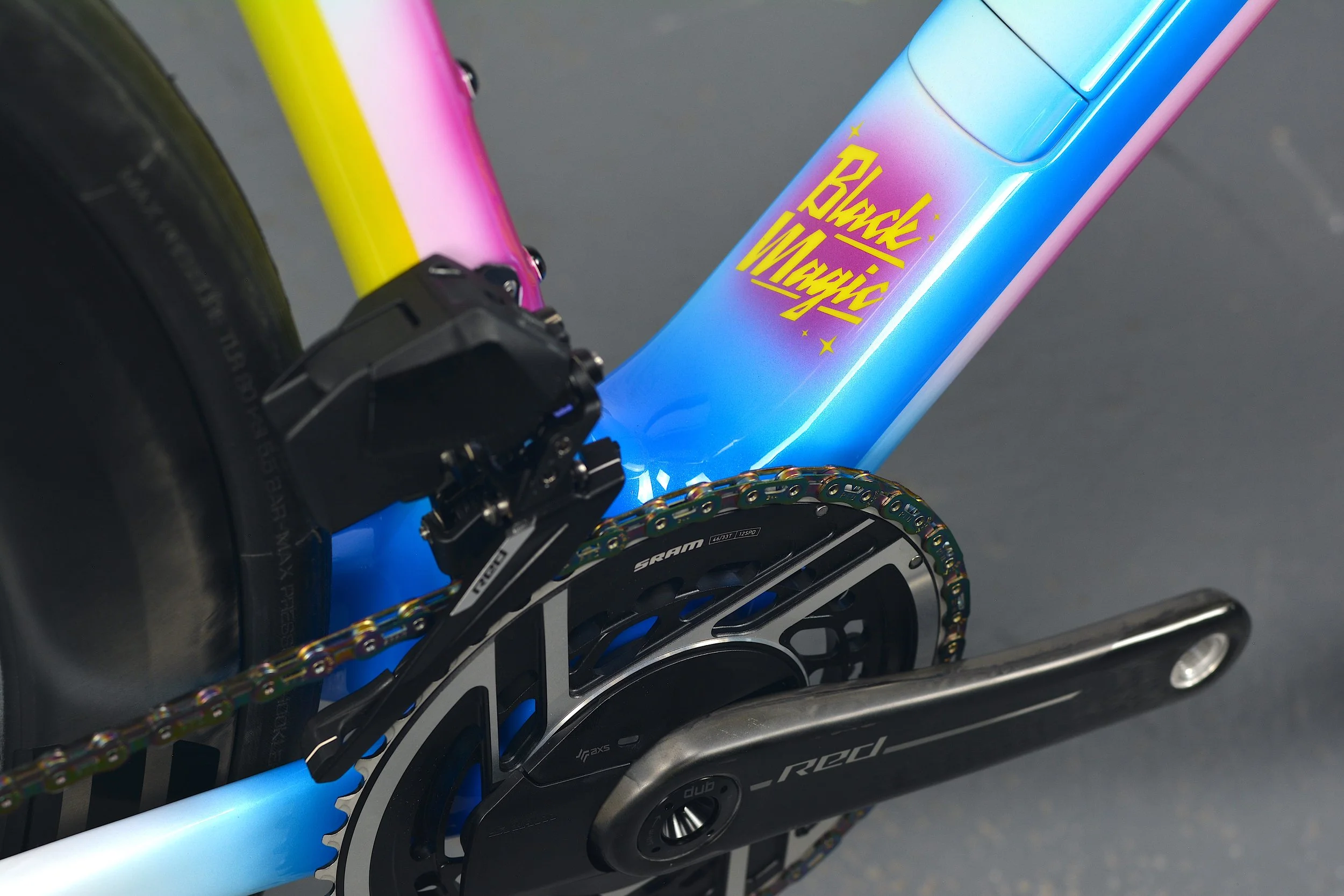

• Front derailleur Sram Red E1 AXS

• Shifters Sram Red E1 AXS

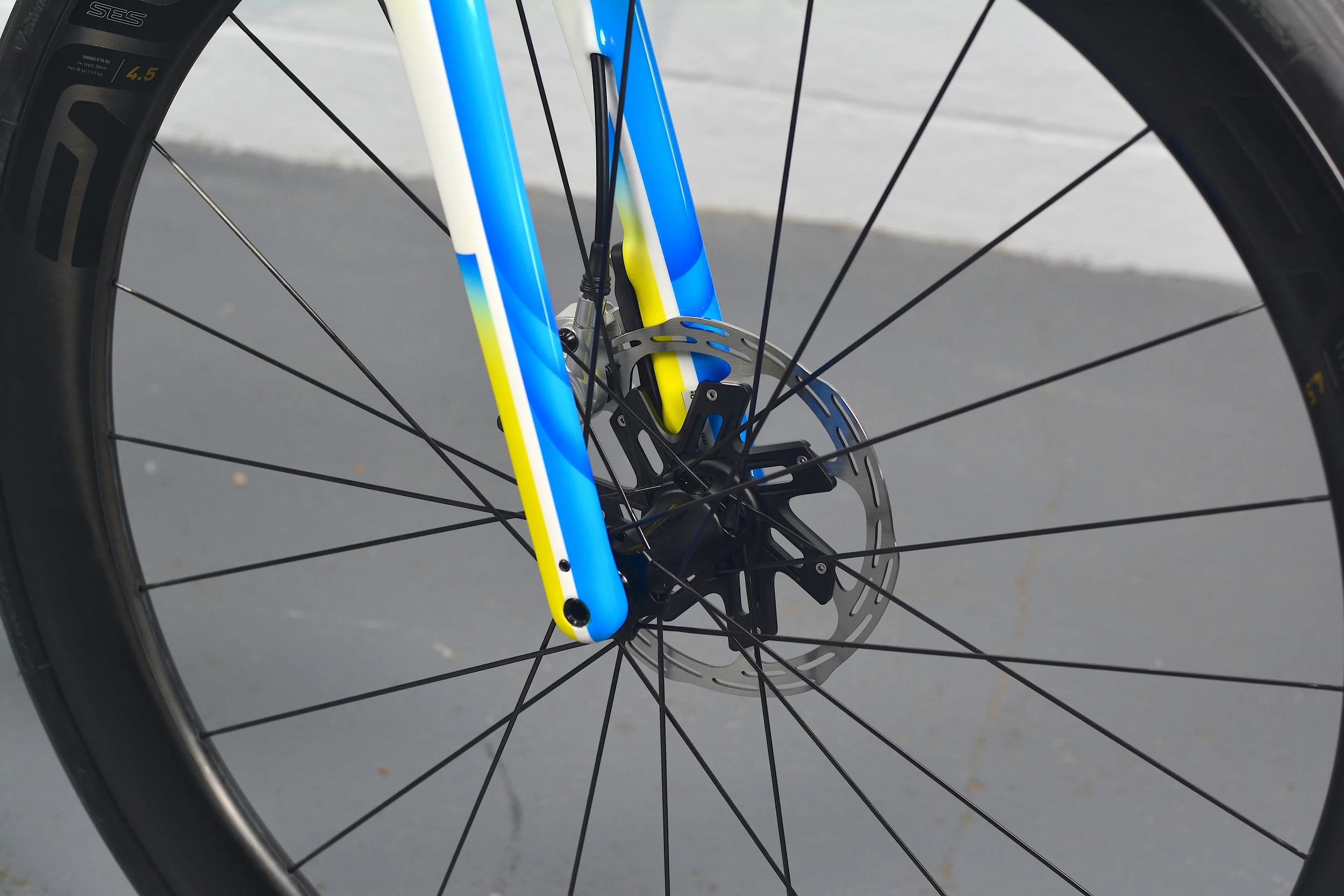

• Brakes Sram Red E1 AXS Paceline X Rotors 160mm front & rear

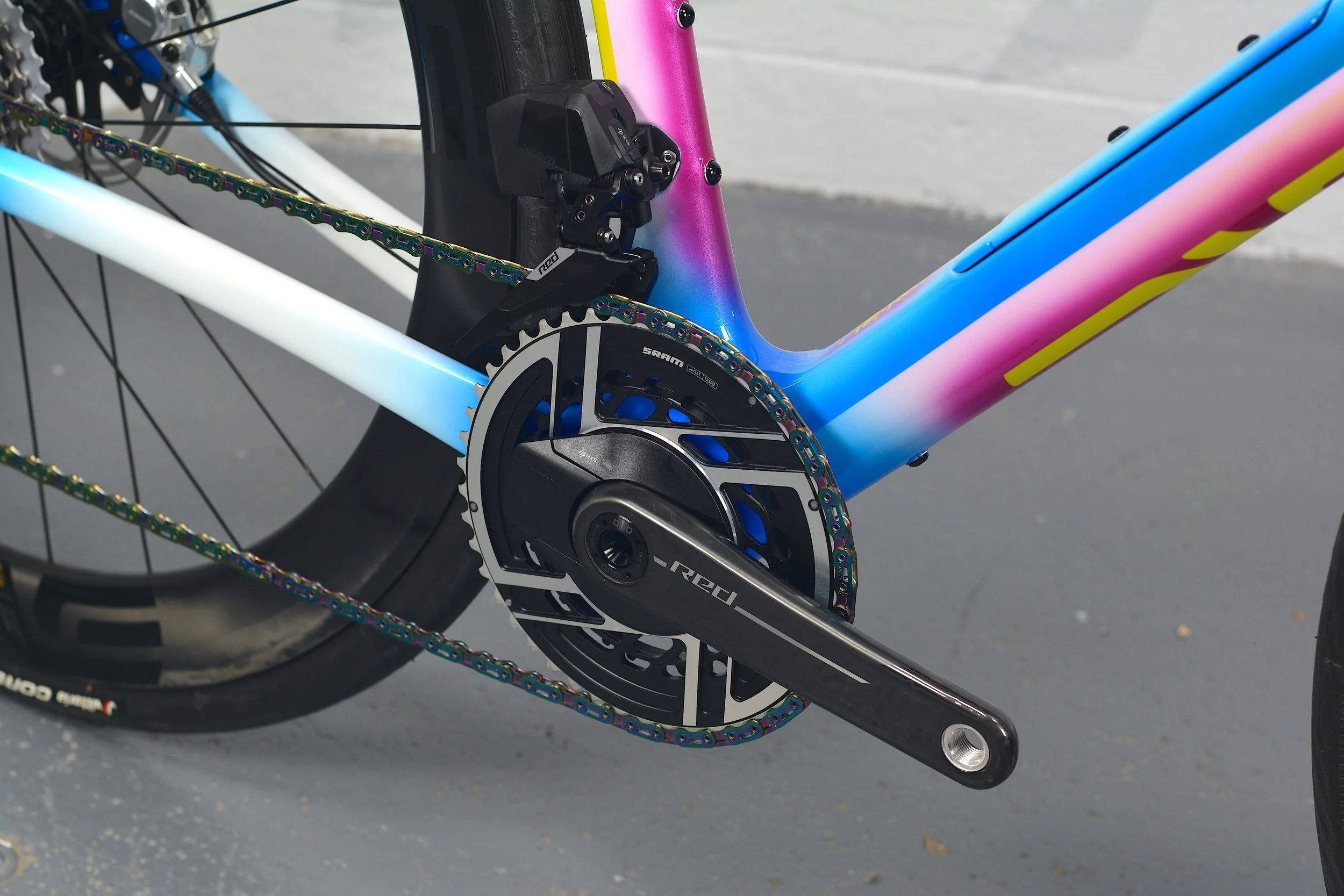

• Crank Sram Red E1 AXS 2X

• Chainrings Sram Red AXS E1

• BB Sram T47

• Cassette Sram XG-1290

• Chain Sram Red AXS E1

• Headset Spacers ENVE Integrated

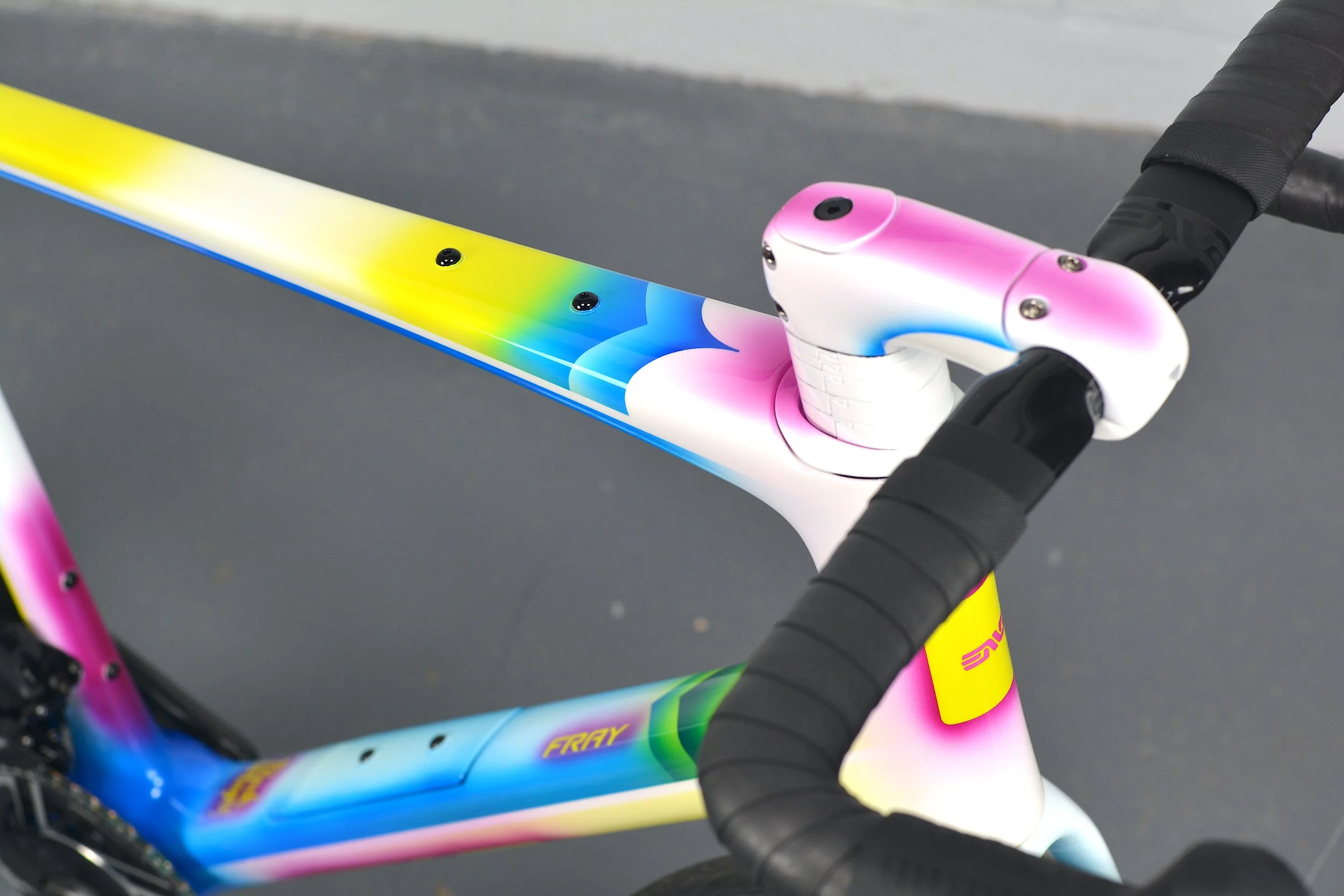

• Stem: ENVE Integrated Carbon Road (choice of length and angle)

• Handlebar ENVE Composites Carbon Integrated (choice of AR, Aero, Compact, or Gravel)

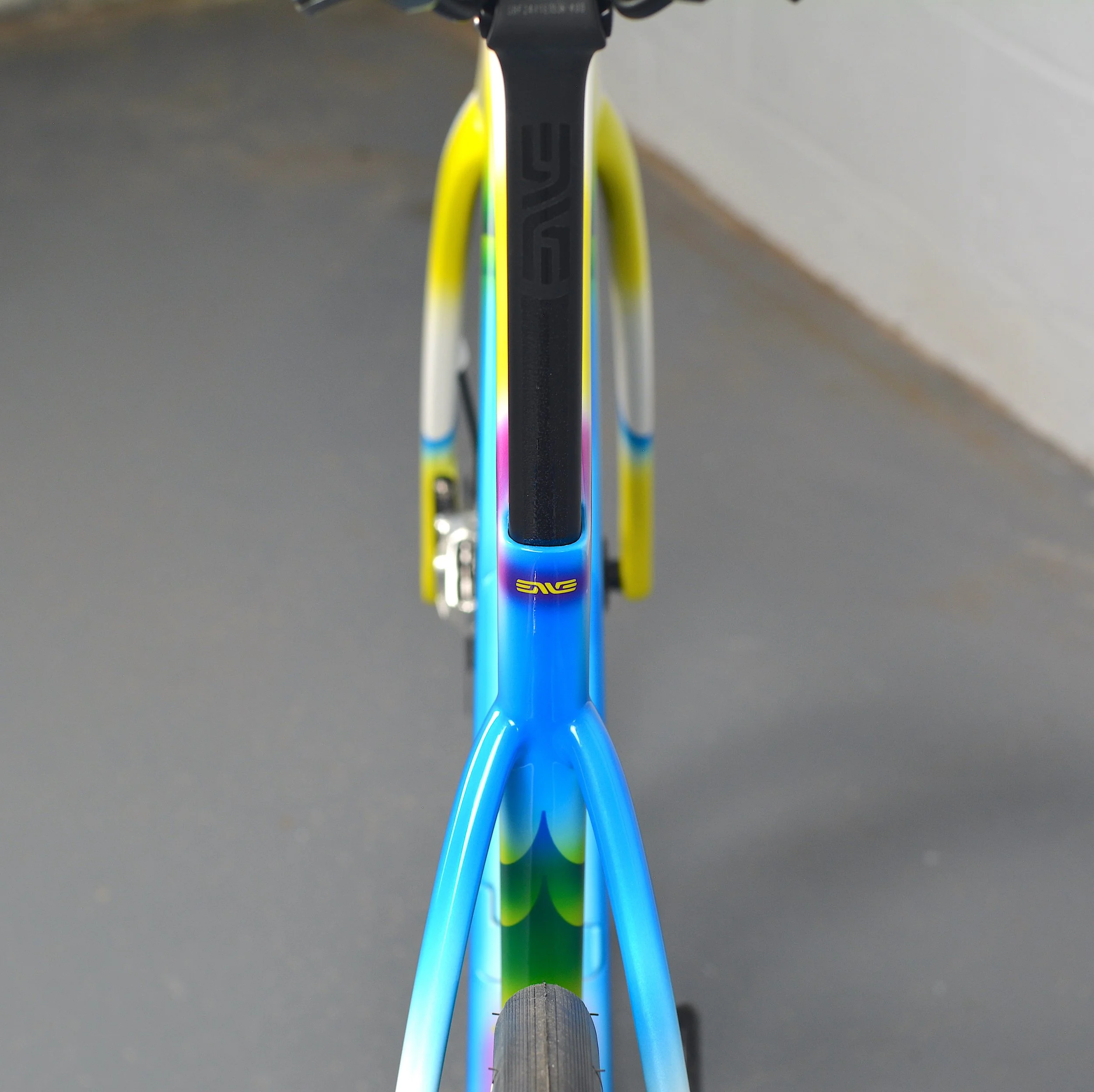

• Seatpost ENVE Composites Aero Carbon Road (choice of setback)

• Wheelset ENVE SES 700c (Choice of 3.4, 4.5)

• Tires Vittoria NEXT 700x34mm

• Tubeless Sealant Orange Seal Endurance

• Saddle Fizik Vento Argo R5

• Bartape ENVE Composites-Black

• Extras Batteries and chargers included

*Specifications are subject to change due to supply and photos may not always 100% represent current specs listed above*
